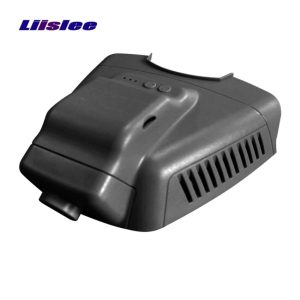

Carbar Ambarella A12 Wifi 1080P HD Car DVR DVRS Mercedes Benz GLE450 GLE500 GLE43 Video Recorder Dash Camera Cam
- Item Type: Car DVR
- Battery Life: Long
- Special Features: Cyclic Recording
- Special Features: Real Time Surveillance
- Special Features: Wide Dynamic Range
- Special Features: Wifi Function
- Special Features: G-sensor
- Special Features: LED display
- Special Features: Anti Vibration
- Special Features: Night Vision
- Special Features: SD/MMC Card
- Special Features: Waterproof
- Special Features: Automatic White Balance
- Special Features: Cycle Recording
- Special Features: Time&Date Display
- Special Features: Microphone
- Special Features: Overspeed Reminding
- Interface: Micro SD/TF
- Interface: Wi-Fi
- Assembly Mode: Hidden Type
- Max External Memory: 32G
- Memory Card Required Reding Speed: Class 10
- GPS logger: NONE
- Brand Name: CARBAR
- Camera Resolution: 1920×1080
- Original Package: YES
- View angle: 170°
- Screen Ratio: 4:3
- Chipset Manufacturer: AMBARELLA
- Video Format: MPEG-4
- Touch Screen: no
- Number Of Lenses: 1
- Frames Per Second: 30
- OSD Language: English
- Imaging Sensor: OV4689
- Video Code: H.264
- Battery: None
- Pixels: 500Mega
- Display Size: none
- Image Sensor: OV4689
- ADAS: Support
- Alarm sound: Support
- Car Video Recorder: Yes
- Dash Cam: Yes
- Black Box: Yes
- DVR Car: Yes
- dashboard camera: Yes
- dash cam 1080p: yes
- car dvr 1080p: Yes
- Full HD DVR: Yes
- HD Car DVR Camera: Yes
- car dvr night vision: Yes
- full HD 1080P: Yes
- car mini dvr: Yes
- special car dvr: Yes
Sensor: USA Ambarella A12L A25
Ambarella A12 solution, security chip is mainly used for aerial photography, SLR, and digital cameras. Which Ambarella A12 belongs to the recorder industry inside the high-end chip signal and endorsement
Image sensor: OV4689 4M CMOS sensor.
With the OV4685 4M CMOS sensor , pixels up to 400W, with F1.8 large aperture glass lens, video delicate, night effect crystal clear. The market is mostly Sony 323,200W pixels.
Screen size: 2.0 inch color TFT-LCD
Resolution : 960(H)*(RGB)*240(V) ; Active area: 40.8(W)*30.6(H) ; Display mode: Normal white TN ; Viewing direction : 12 O’clock ; Backlight color : White(LED*2)
Lens material: 6G + IR
Using 6G all glass high-resolution lens, with stray light filter, providing true 170°super wide angle. Depend on super high resolving power, can bring you very
transparent optical power and more clearer pure image quality.
Aperture Value: F1.8
F1.8 large aperture, you can get more image information in a very short time. Effectively increase the amount of light in a dark environment, achieve a good exposure combination, shoot high-definition images The smaller the value of F, the larger the aperture, the larger the aperture, the greater the amount of light entering.
Maximum resolution: 1080P=1920*1080P
1.At March 2017, we updating solution from Ambarella A7 to Ambarella A12, in order to products runs well , we just do 1080P resolution , at the future , we will do 1440P.
2.Chip solution is different , but resolution is same 1080P , the final presentation of the video effect is different, the A12 solution is the top chip image processing, compare it withNovetek and MSTAR, the security of the video image effect than MSTAR much higher.
Video Format: MP4 H.264 compression format.
Effective pixels: 4 million pixels
Recording angle: 170 °diagona
170°super-wide-angle lens, easily covering the view of 6-lane.
Voltage: 12V DC
Storage : TF card (Class 10 or above, maximum support 32gb format)
APPapplication: support Android, ios system
Night vision: Starlight night vision
Parking monitor : Yes
The product’s can monitor the change of acceleration at any time with G-sensor sensor built-in, when the acceleration change non-normally (collision, emergency brake, etc.), the emergency recording function will be triggered, the emergency video file will be saved in the TF Card root directory, files in this folder will not be covered.
The Product Super Functions
HD Recording
Up to 1080P with 30FPS impacted continuous recording and no missing data.
Photographing Function
Press camera button to take HD photos during the recording.
Synchro Sound Recording
When recording, you can set to record audio.
Turn on the audio recording function at DRV setting menu or your mobile app. The default setting for this function is OFF.
Video Playback
Stored video files with MP4 format can be played back through the mobile app”Enter Videos”or DVR LCD screen or remove the Micro SD Card and play at PC.
Emergency Automatic Video Locking
Built-in G-Sensor, If car collision or accident occurred, DVR unit will automatically lock the video file and save it as an important video.
The video file will not be deleted during cycle recording.
WiFi Connection
Control/Monitoring driving video via WiFi and support playback/download.
Parking Monitor
When the car is parked with the ignition off, if something hits your vehicle the G-Sensor will automatically boot the DVR ON to record the video for approximately 20 seconds and then automatically turn OFF.
ADAS Alarm
Including the front car start move reminder, turn on the light reminder, speed limit sign reminder, traffice light recognition reminder, fatigue driving reminder and other security warning functions, to provide a full range of security for driving.
RCA Output
User can connect RCA output cable of car dvr to car dvd, the image will show on the screen of car dvd.
