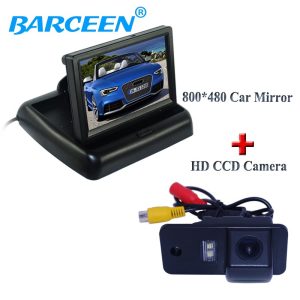

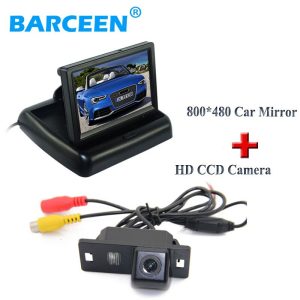

Car rear monitor bring 4.3″ foldable hd lcd screen +170 wide angle car reserve reversing camera for Audi A3 A4 A6 A8 Q5 Q7 A6L
- Item Type:Â Car Monitors
- Brand Name:Â BARCEEN
- Item Weight:Â 500g
- Display Size:Â 4.3″
- Placement:Â In-Dash
- Model Name:Â JF-M-001
- Resolution:Â 800×480
- Material Type:Â ABS
- Item Size:Â 14*16*7
- Function:Â car rearview camera and monitor
- resolution:Â 800*480
- screen size:Â 4.3″ rear monitor
- shell material:Â plastic
- color:Â black
- wire or wireless:Â wire
- original or universal:Â original
- lens angle:Â 170 angle
- image sensor:Â hd ccd sensor
- water-proof:Â IP 69K
Car parking  camera parametersÂ
Anti fog glass
RCA connector
High grade of waterproofing: IP69k.
High-definition and 170 degree wide viewing angle.
Applicable to Original car
Snap-in design, it is easy to install.
Its simple and modest design and small size won’t draw any attention.
It helps to avoid incidents and accidents abrasion well.
TV system: PAL/NTSC
Horizontal Resolution: 520 TV lines
Effective Pixels: NTSC:510(H) * 492(V)
Minimum Illumination: 0.02 Lux
Lens: 23Â mm
View Angle: 170 degree
Sync. System: internal
S/N Ratio: >48dB
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Power: DC 12V
Current Consumption: 90mA
Operating Temperature: -20 to + 70°C, 95% RH maximum
Storage Temperature: -40 to + 100°C, 95% RH maximum
Water-proof: IP69K
